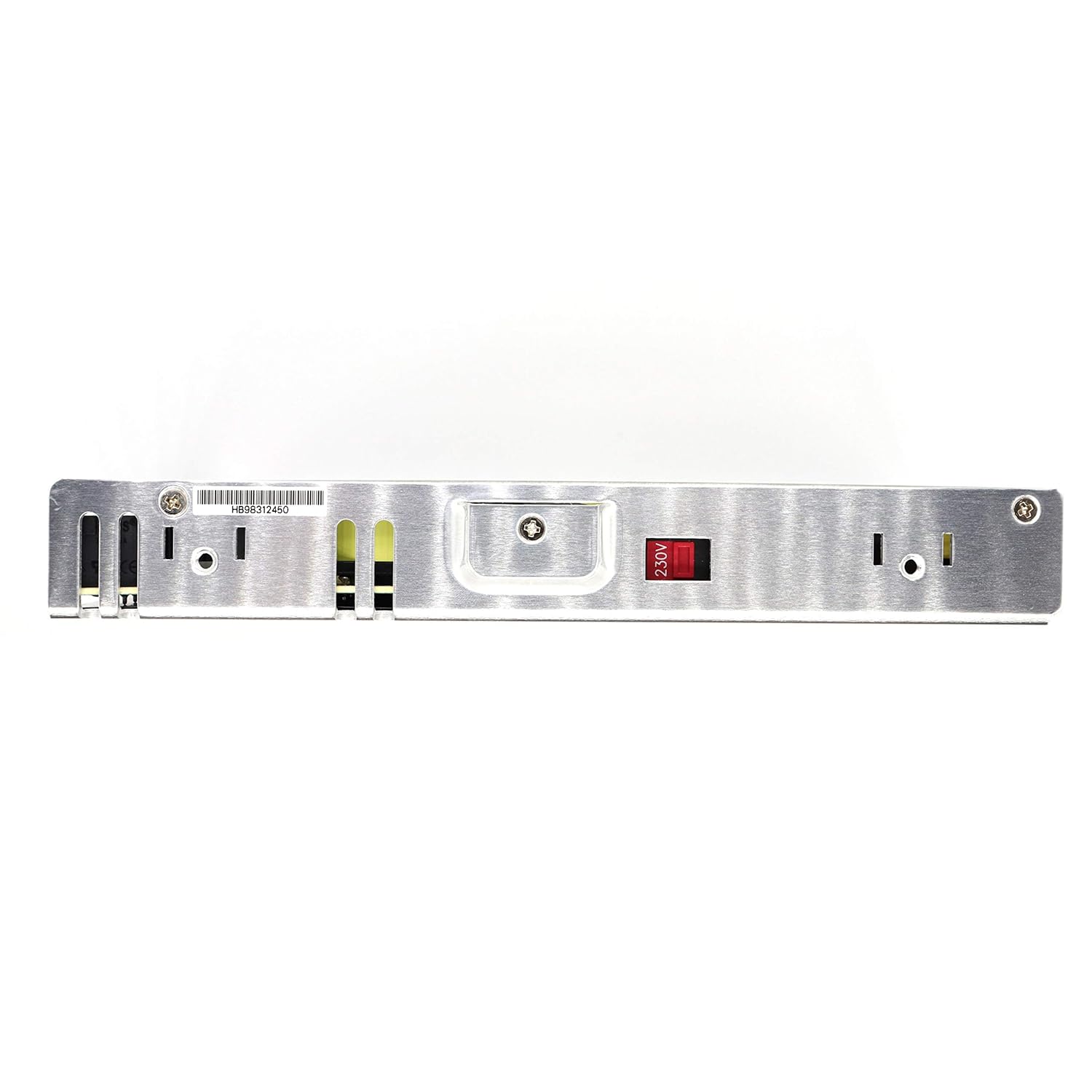

Mean Well LRS-200-12 Single Output Switching Mode Power Supply 204W 12VDC 17A Output (LRS Series 200W 12V)
Product details
| Management number | 217023497 | Release Date | 2026/04/19 | List Price | $9.28 | Model Number | 217023497 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Ensure optimal performance of your electronic device with the use of this LRS-200-12 AC to DC power supply from MEAN WELL.It has a voltage of 12 V and maximum output power of 204 W. This part's single output can handle a current up to 17 A.This part has a temperature range of -30 °C to 70 °C.EU RoHS: Compliant ECCN (US): EAR99 Package Height: 30 Package Width: 115 Package Length: 215 Type: Switching Style: Enclosed Input/Output Type: AC/DC Number of Outputs: 1 Output Type: Fixed Output Voltage (V): 12 Output Current (A): 17 Output Power (W): 204 Minimum AC Input Voltage (V): 90 Maximum AC Input Voltage (V): 264 Minimum DC Input Voltage (V): 240 Maximum DC Input Voltage (V): 370 Minimum Isolation Voltage: 3000VAC Line Regulation: 0.5% Load Regulation: 1% Maximum Input Current (A): 4(Typ) Input Frequency (Hz): 47 to 63 Tolerance (%): ±1.5 Efficiency (%): 87.5(Typ) Configurable: No Input Connector Type: Screw Terminal Block Output Connector Type: Screw Terminal Block Power Indicator: Yes Ripple & Noise: 150mV(Max) Medical: No Minimum Operating Temperature (°C): -30 Maximum Operating Temperature (°C): 70 Product Weight (g): 660 Pin Count: 9
- AC Input Range Selectable By Switch. 90-132VAC Switch on 115VAC / 180-264VAC Switch on 230VAC
- Rated Output: 12V, 17A, 204W MEAN WELL LRS-200-12
- Working Temperature: -30~+70°C Withstand 5G vibration test
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Complete safety certificates: IEC/UL 62368-1, BSMI CNS14336-1, EAC TP TC004
| UPC | 645312123230 |
|---|---|
| Brand | MEAN WELL |
| Wattage | 200 watts |
| Model Name | lrs |
| Form Factor | 1U |
| Item Weight | 0.01 Ounces |
| Manufacturer | MEAN WELL ENTERPRISES CO., LTD. |
| Model Number | LRS-200-12 |
| Cooling Method | Air |
| Current Rating | 17 Amps |
| Output Wattage | 200 Watts |
| Mfr Part Number | LRS-200-12 |
| Compatible Devices | Computer |
| Maximum Input Voltage | 264 Volts (AC) |
| Minimum Input Voltage | 90 Volts (AC) |
| Upper Temperature Rating | 70 Degrees Celsius |
| System Bus Connector Type | ATX or EPS |
| Connector Type Used on Cable | screw |
