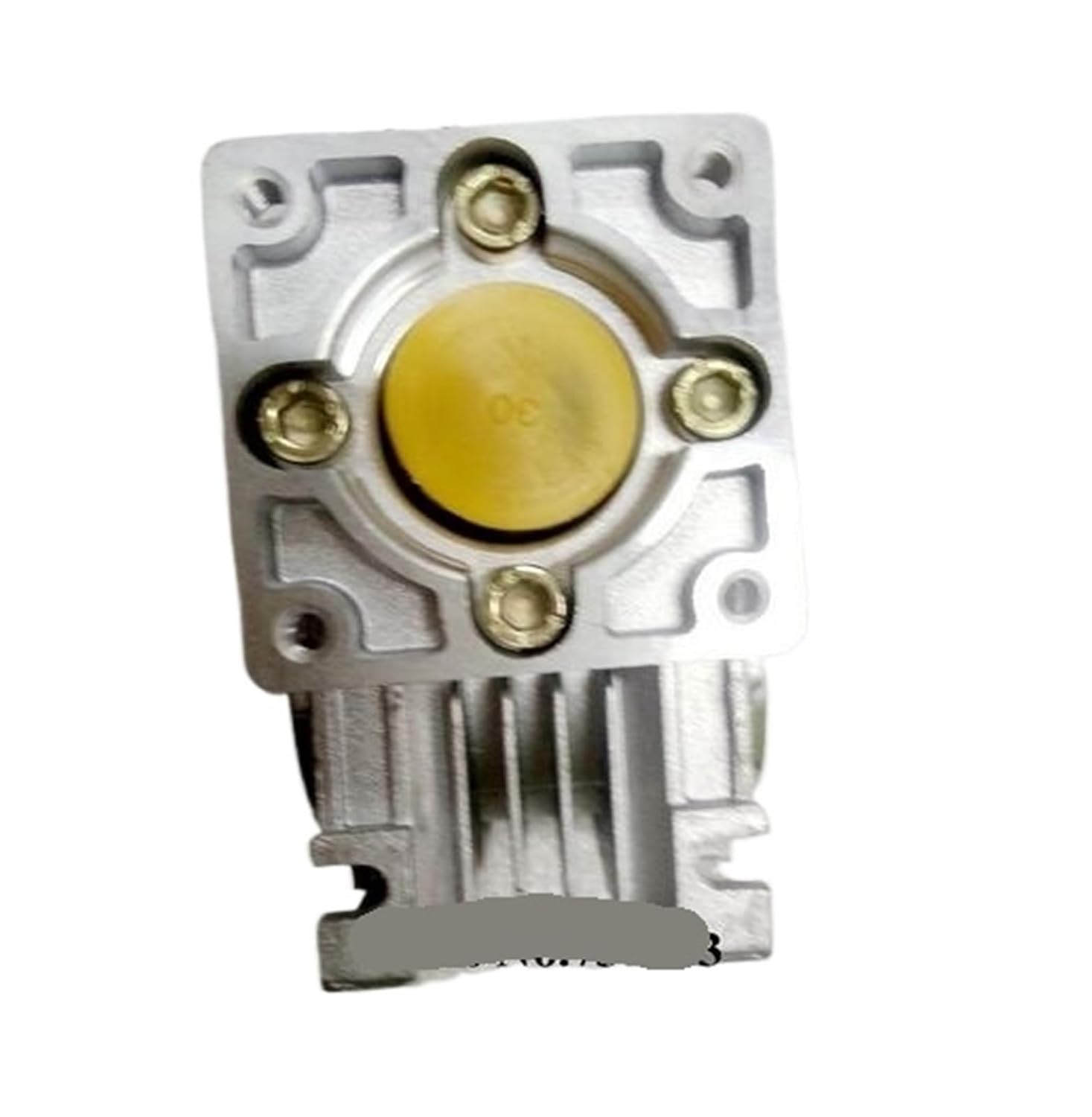

5:1 to 80:1 Worm Reducer RV030 Worm Gearbox Speed Reducer with Shaft Sleeve Adaptor for 8mm Input Shaft of Nema 23 Motor(10 to 1)

5:1 to 80:1 Worm Reducer RV030 Worm Gearbox Speed Reducer With Shaft Sleeve Adaptor for 8mm Input Shaft of Nema 23 Motor1pcs shaft sleeve adapter (fit for 8mm motor shaft)1pcs NMRV30 reducer(usually send silver color if you don't have special request)Packing including:This link of worm reducer withshaft sleeve(fit for8mm motor shaft)butwithoutoutput wormshaft. if need output shaft, please order other link in our store.With gear ratio 5:1,7.5:1, 10:1, 15:1, 20:1, 30:1,25:1, 40:1, 50:1, 60 :1, 80:1 for customers.This adaptor is used to assemble motor shaft with input hole of worm reducer.When fit the nema 23 stepper motor to the worm reducer, if motor shaftdiameter is 8mm, and the wormreducer just accept 11mm inputshaft(input hole 11mm), then this shaft adaptor could be usedbefore fixing with worm reducer.Suitable for D type(single plane) shaft.Technical data of shaft adaptor of 8mm to 11mm:outerdiameter:11mm, inner diameter: 8mm, both size with a littletolerance.Worm reducer by our common camera without PS:Material for worm reducergearbox:Worm wheel: Nodular cast iron and bronzeWorm shaft: 20Cr steel.The hardness of surface is 56-62HRC with carbonized layer 0.3-0.5mmHousing: aluminum with oven paintingColor: silverFeature ofworm reducer gearbox:1) High quality aluminum alloy die cast gearbox2) High accuracy worm gear and worm shaft3) Less noise and lower temperature increase4) Easy mounting and linking, high efficiencyThe dimension of the RV30worm reducer:Worm reducer assemblingwith nema23stepper motor and brushless motorWe also have worm reducerparts such asoutput shft, torque arm and output flange, if any need, Please click the link below to order.14mm Single Output Shaft or Double Shaft Worm Output NMRV030 ,If you need to click the link below to buy:If you need torque arm, please click the link below to order!If you need output flange,
